Description

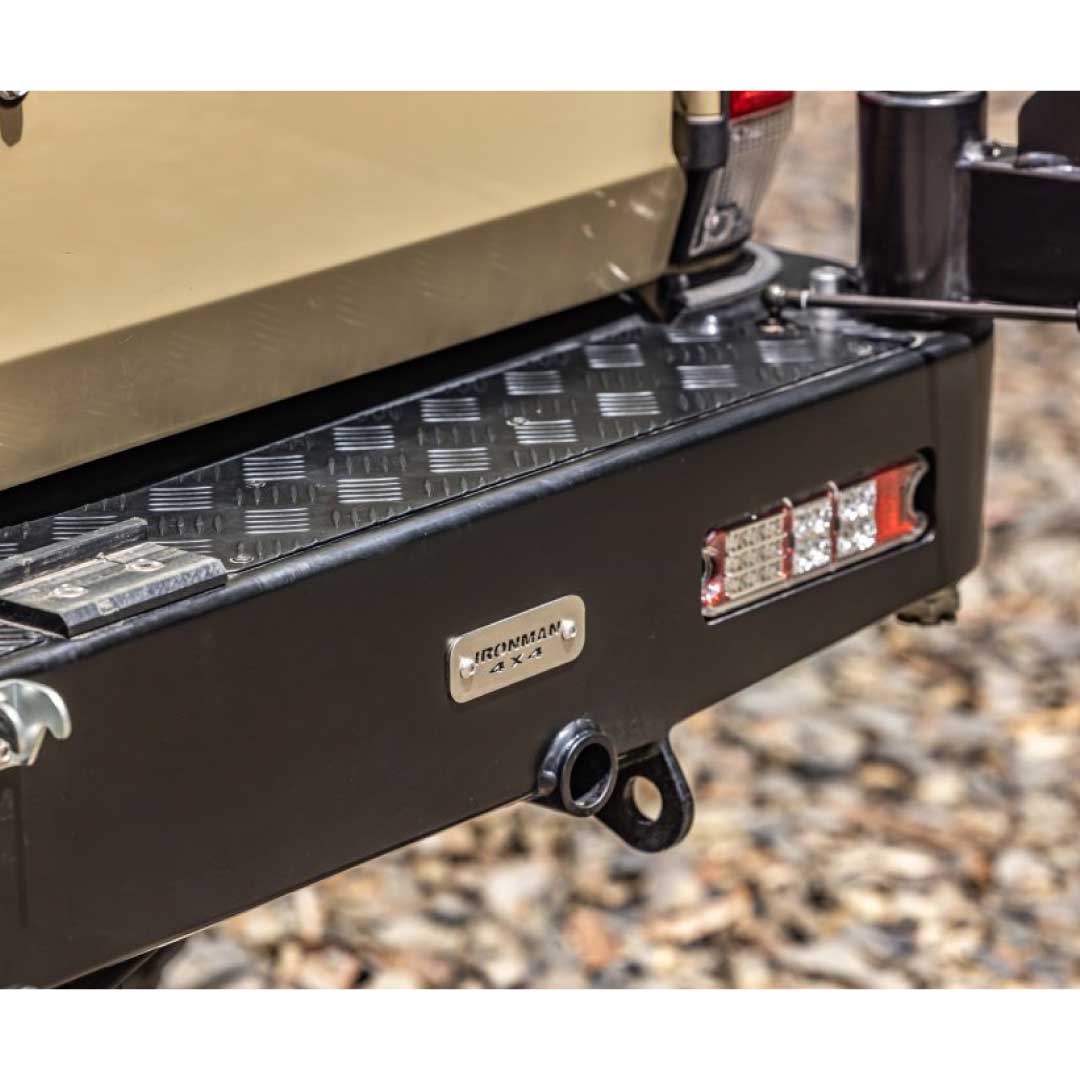

Where strength meets practicality. The Rear Swing Arm Bar is the ideal option for those who want to equip their LandCruiser with high-quality rear protection, a tow hitch and the options to make carrying spare tyres and/or jerry cans a whole lot easier. Ironman 4×4’s seamlessly designed rear bar has proven, tough-track capabilities.
KEY FEATURES
– 3mm thick steel, powder coated with a matte black textured finish
– Enhanced rear strength and additional protection from impact
– High-powered gas struts
– Supplied with electro-coated, high-tensile steel bolts
– Integrated tow hitch providing higher departure angle than competitors
– Double locking safety mechanism
– Accommodates either dual 35-inch tyres, dual jerrys and a high-mount jack, or a combination of all
*Please note the images of the THOR 76 features the RHS Wheel Carrier, LHS Double Jerry Carrier, and Hi-Lift Jack (All Sold Separately). Images are used as reference only.
SPEC YOUR BAR TO SUIT YOUR NEEDS
LHS Double Jerry Carrier
LHS Wheel Carrier
RHS Double Jerry Carrier
RHS Wheel Carrier
Hi-Lift Jack Adapter
SPECIFICATIONS
– LIGHTING: LED’s with IP67 Waterproof Rating
– TOW LOAD RATING: 3,500kg
– NUMBER PLATE LOCATION: Bracket Provided on Spare Wheel Carrier
– WEIGHT: Rear Bar – 56kg | Wheel Carrier (unladen) – 20kg | Jerry Can Holder (unladen) – 36kg
– HITCH RECEIVER: 50mm x 50mm (Tow ball mount and tow ball sold separately)
– GAS STRUTS: Yes
– STEEL THICKNESS: 3mm Thick Steel
– FINISH: Matte Black Textured UV-Stable Powder Coat Finish
– JACKING POINTS: Yes – 2 x High-Lift Points
