Description

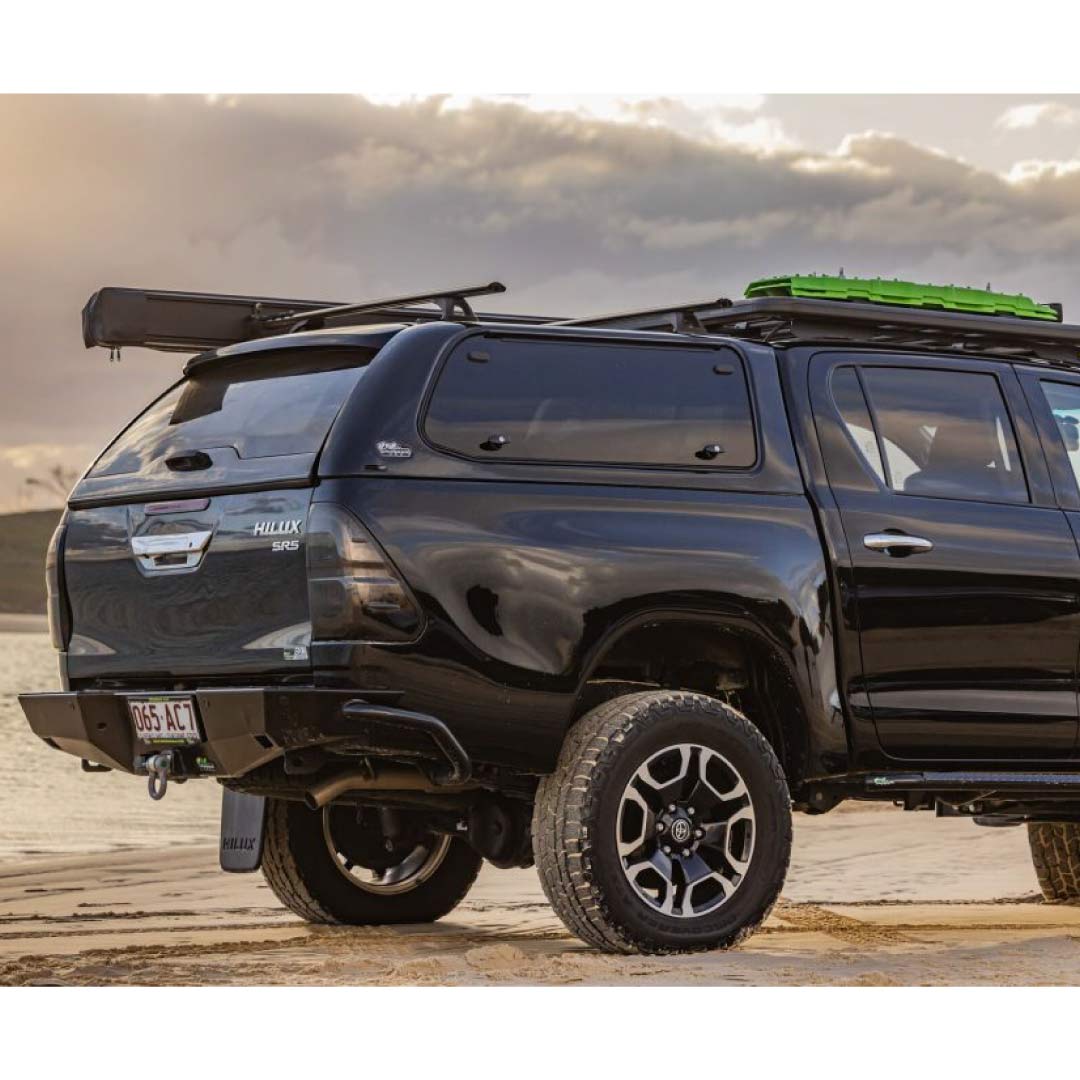

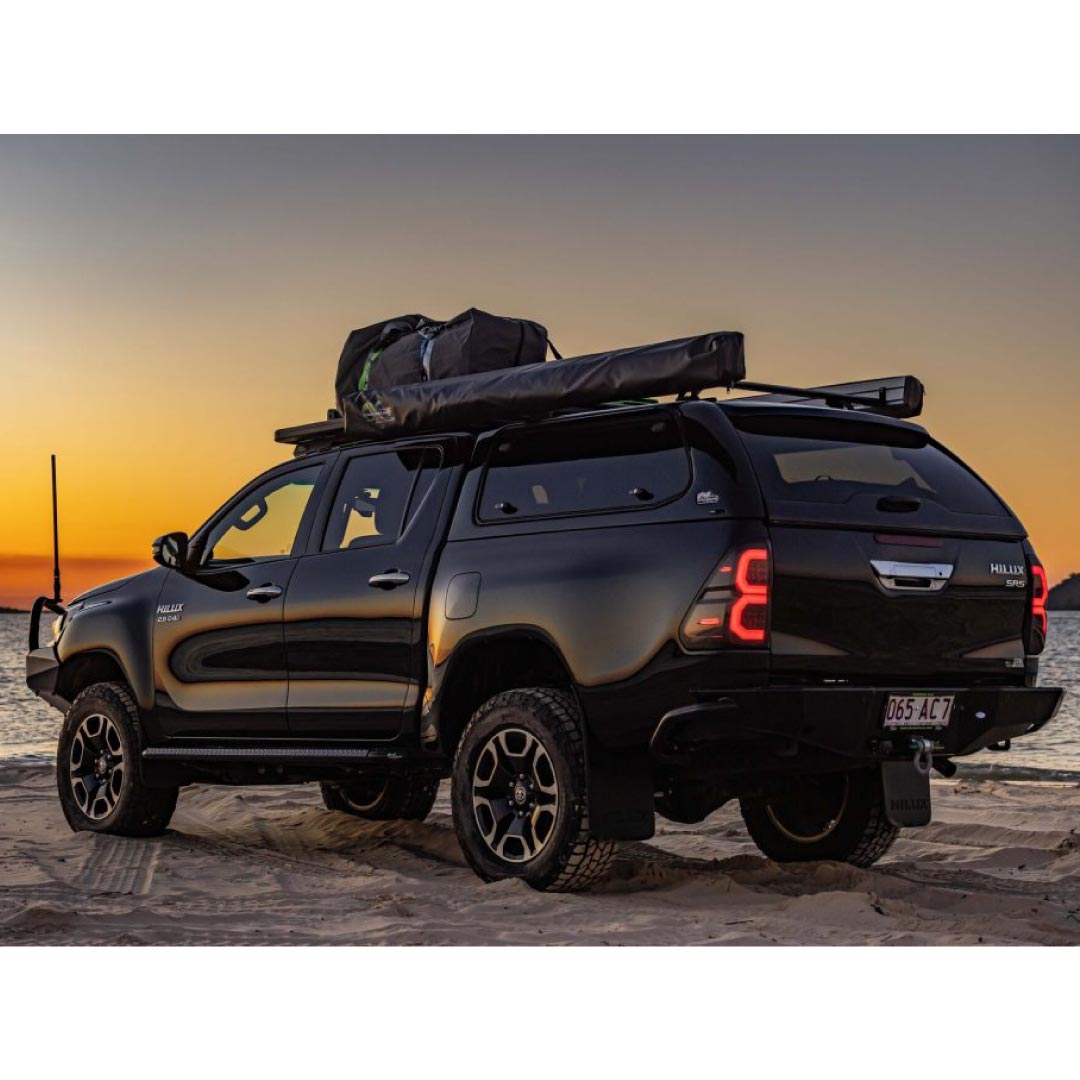

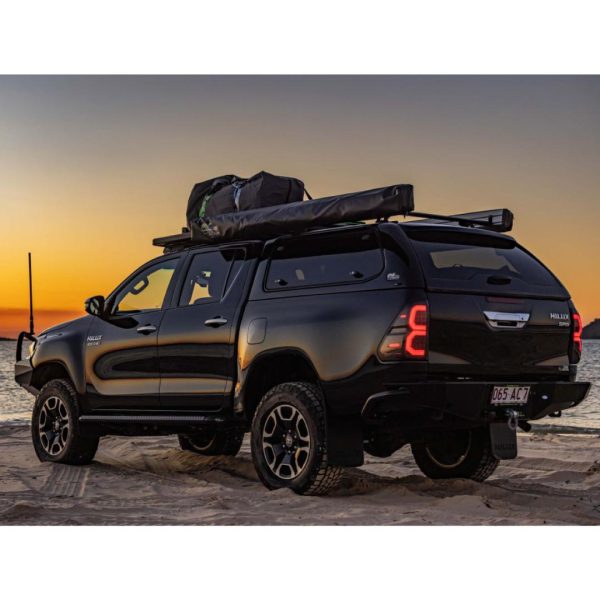

The Ironman 4×4 Pinnacle 2 Fibreglass Canopy – Dark Grey (1G3) (Part Number ICANOPY051-DG). DESIGNED FOR WORK AND PLAY, THE PINNACLE 2 CANOPY PROVIDES LOCKABLE, DRY SPACE AT THE REAR OF YOUR UTE.
Formed using heavy-duty vinyl ester fibreglass with a reinforced structural frame, the clean lines allow the canopy to seamlessly transition with the vehicle.
The high opening side and rear gas strut windows provide multiple access points allowing bulky items to secured in the tub. Further increasing storage, the canopy is designed for rooftop storage. Rated for dynamic loads of up to 90kg, the canopy’s rear door opens independently of the rear spoiler, removing any interference with roof loads.
Fast Facts:
- Stylish, smooth finish, following the contours of the vehicle
- High opening large lift-up windows with gas struts for easy access into the canopy
- Central locking rear door
- Internal metal supporting frame providing additional strength
- Hardwired LED light, increasing vision in low light circumstances and eliminating the need to change batteries
- Built-in rear LED brake light
- 90kg roof load rating
- Colour coded to suit your vehicle
SIX CLAMP MOUNTING SYSTEM:
- Six clamp mounting system (three per side), which can be positioned anywhere along the canopy’s length
- Extruded aluminium clamps with long adjustment range and toothed top and bottom
- Squared top teeth interface with canopy’s mount rail for a secure fit whilst pointed bottom teeth bite into the underside of the tub’s lid
DRAINAGE SYSTEM:
- Three drains per side improve the water egress
- The wide design reduces the chance of a blockage

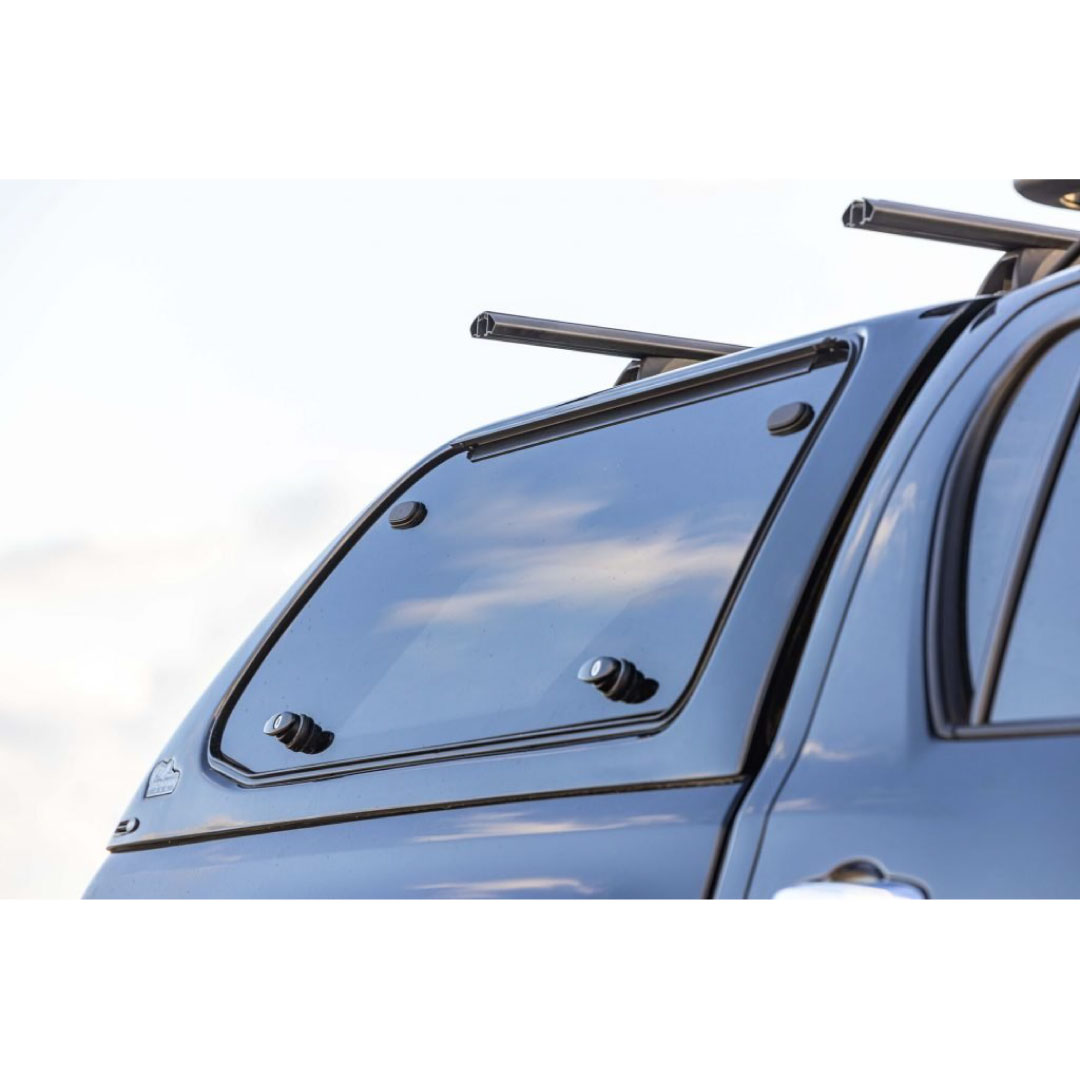

SIDE AND REAR WINDOWS:
- The same left and right side window shapes are used across all models, reducing inventory requirements and complexity
- The rear window opens independently of the rear spoiler, removing interference with any loads carried on the roof and improves water and dust sealing
