Description
Amazing performance, with lower power draw, in a sleek package – get out of the dark ages and into a whole new world with Ironman 4×4 Scope Driving Lights.
THE CREAM OF THE CROP
The Scope 9” driving light boasts a whopping 1 LUX at 1.77km when operated as a pair of spot beam driving lights – while a pair of combos, is not far behind at 1.4km! Amazing performance, with lower power draw, in a sleek package, the Scope 9” driving light achieves greatness with upgrades in reflector technology.
A TIME TO REFLECT ON MODERN TECHNOLOGY

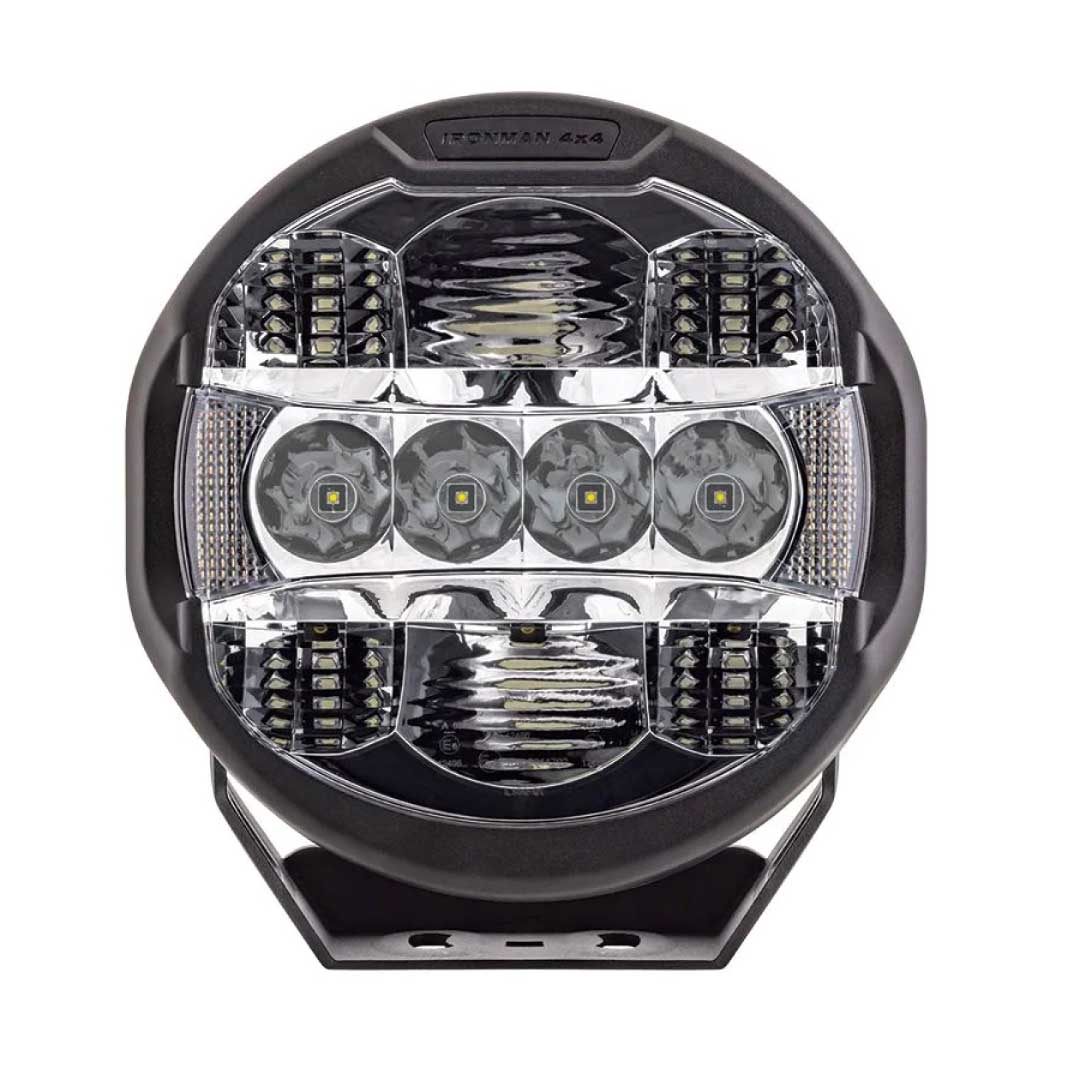

The true brilliance in the Scope 9” driving light is the inclusion of the Hooded Reflectors which are positioned along the top and bottom of the light harnessing 6 x 12W high power LEDs.
Hooded reflectors are hugely more effective and efficient, as the LED shines directly into them unlike a traditional reflector cup, where huge amounts of light is lost.
A SPOT and a COMBO version of the hooded reflector is available – the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.
The combination of high-power LEDs and the efficiency of these reflectors means fewer LEDs, less power draw, and less heat – and that means a more durable and high-performing driving light!
100% IMPROVEMENT
Ironman 4×4, alongside most driving light manufacturers in the market, has been utilising traditional reflector cup technology for many years. Unfortunately, small, shallow reflector cups can be largely inefficient.
The Scope 9” driving lights feature 4 high-powered LEDs running through the centre of the light. The light, from these LEDs, is captured by our deep-dish reflector cups and projected out.
Our deep-dish reflector cups are up to 100% deeper than traditional cups, offering great improvements in light efficiency. This middle row of LEDs provide great light output directly in your sight line for an optimal driving experience.
TURN IT DOWN
With lights this powerful, sometimes, you need to switch it down a bit. Approaching regional towns, reflective road signs increase in density, and can be very distracting to a driver.
The 9” Scope driving lights can be dialed down at the touch of a button, cutting power by 80%. While still providing improvements over your vehicle’s stock high-beams, the power cut greatly improves the driving experience in these conditions.
KEEP IT COOL & BRIGHT
Heat is the biggest enemy to the performance of an LED, and therefore it is critical to get heat away quickly.
The 9” Scope driving lights, run a minimal 10 x 10-12W LEDs, which are directly mounted to the cast housing. Utilising the hugely efficient reflectors and less LEDs already generates less heat – couple that with clever mounting to the cast housing ensuring maximum performance and brightness over long periods.
Scope 9” driving lights run a 5700 Kelvin colour rating – a colour most closely matched to that of daylight is easier on the eyes!
DURABILITY IS SUITABILITY
Driving lights need to last. And we’ve ensured that these Scope driving lights, have all the necessary features to be a dependable purchase.
– IP68 Protection against water and dust ingress
– Case Breather, to allow hot air to escape to eliminate condensation and ensure a water tight seal is maintained
– Case mounted LEDs, allow for fast heat dissipation, keeping the lights cool & LEDs bright
– Virtually indestructible polycarbonate lens
– Rust preventing facia with no front facing screws to capture and hold moisture DuPont powder-coated cast aluminium housing with stainless steel mount system. Centre and side pinning bolts for ultimate rigidity
– 3 Year Warranty
ALL THE NITTY GRITTY DETAILS
– RAW LUMENS: 16,000 SINGLE | 32,000 PAIR
– EFFECTIVE LUMENS: 10,800 SINGLE | 21,600 PAIR
– LUMEN EFFICIENCY: 67.5%
– LEDS: LUMINUS
– LED CONFIGURATION: 6 X 12W & 4 X 10W HIGH OUTPUT LEDS
– DIMMABLE: YES
– IP RATING: IP68 WATER & DUST INGRESS
– 1 LUX RATING (SPOT): 1,250M SINGLE | 1,768M PAIR
– 1 LUX RATING (COMBO): 1,050M SINGLE | 1,414M PAIR
– LUX @ 10M: 7,400 SPOT | 4,722 COMBO
– MAX POWER: 113.5W
– CURRENT DRAW: ~12.6 AMPS @ 12V
– KELVIN (COLOUR): 5,700K
